Fuel-filler Pipe Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily install the fuel-filler pipe to the vehicle-side stud bolt.

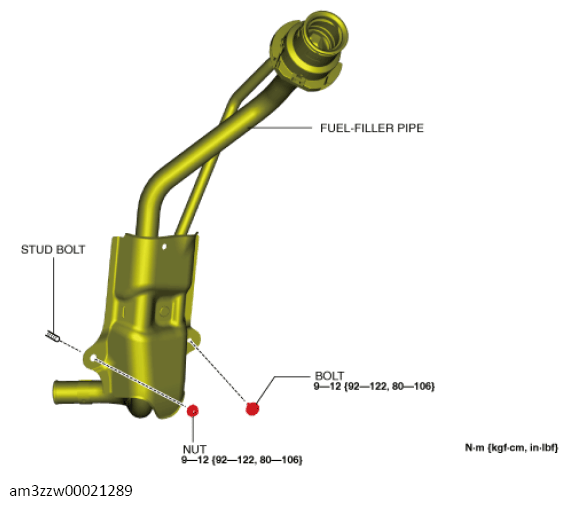

    Fig 1: Fuel-Filler Pipe, Stud Bolt, Nut And Bolt With Torque Specification
    G13557301Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten bolt.
  3. Completely tighten the nut.
  4. Completely tighten bolt.
