Joint Hose Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

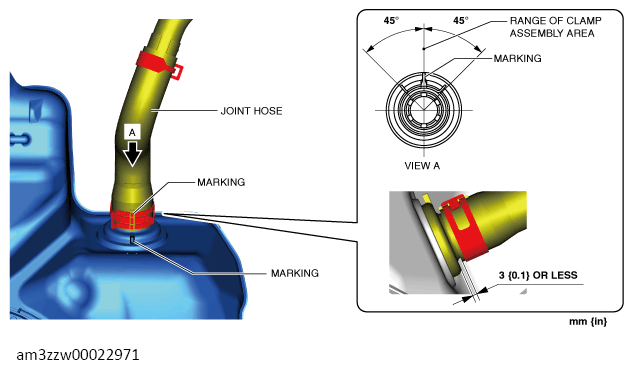

- Align the joint hose marking with the pipe marking as shown in the illustration and assemble.
Fuel tank side
 Courtesy of MAZDA MOTORS CORP.
|

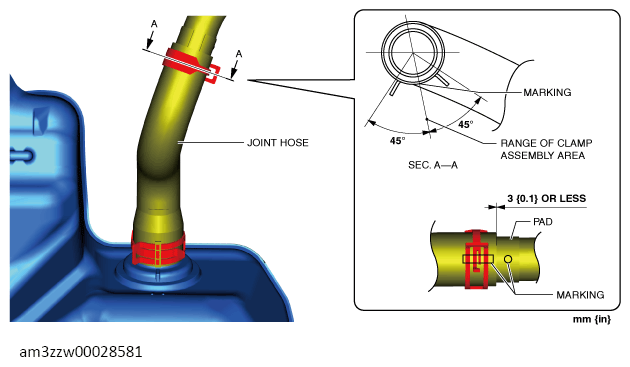

- Align the joint hose marking with the fuel-filler pipe marking as shown in the illustration and assemble.
Fuel-filler pipe side
 Courtesy of MAZDA MOTORS CORP.
|
