Set Plate Component Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

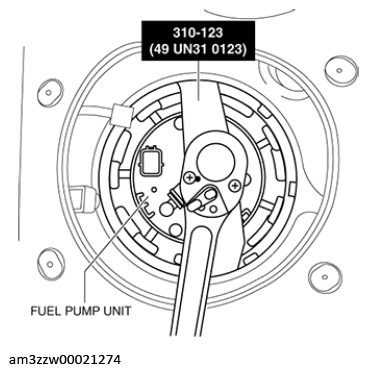

  1. Install the SST shown in the illustration.
    G13175069Courtesy of MAZDA MOTORS CORP.
  2. Remove the set plate component using the SST.
