Teflon Seal Removal Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- When stretching the teflon seal, do not damage the fuel injector with the tool.

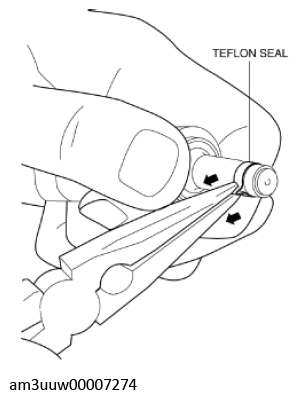

- Stretch the teflon seal as shown in the illustration.
 Courtesy of MAZDA MOTORS CORP.
|
- Remove the teflon seal as shown in the illustration.
 Courtesy of MAZDA MOTORS CORP.
|
