Spacer Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

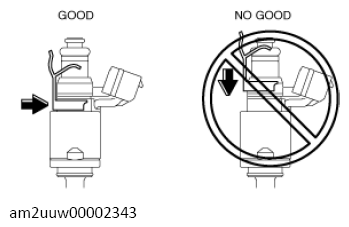

  1. Install the spacer to the fuel injector while being careful of the spacer installation direction and position.
    G13557267Courtesy of MAZDA MOTORS CORP.
