No. 3 Engine Mount Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the cooler hose (LO) aside. (See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G] .)
  2. Remove the clips shown in the illustration and set the ground cable aside.

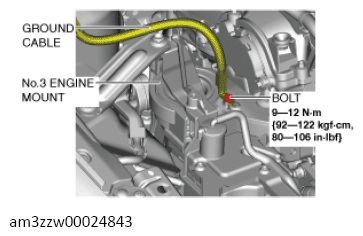

    Fig 1: No. 3 Engine Mount, Ground Cable And Bolt With Torque Specification
    G13556869Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.

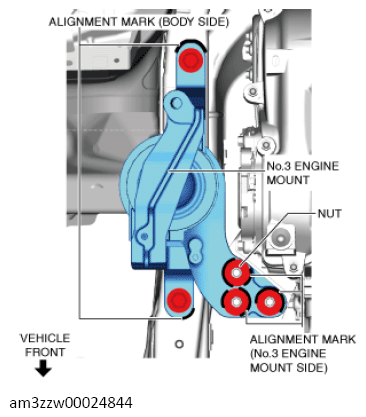

  3. Place alignment marks on the locations shown in the illustration so that they can be assembled to the same positions as before removal.
    G13556870Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Paint so that the No. 3 engine mount is framed on the body side and the outline of the nut is framed on the No. 3 engine mount side.
  4. Install the SST using the following procedures.
    G11428983Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • Refer to the SST instruction service information for the basic handing procedure.
    1. Install one front foot No. 2 to each of the left and right front shafts of the SST
    2. Protect the positions shown in the area using tape.
      G13556568Courtesy of MAZDA MOTORS CORP.
    3. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION .)
    4. To enable installation of the SST, disconnect the wiring harness clips shown in the illustration and set the wiring harness aside.
      G13556569Courtesy of MAZDA MOTORS CORP.
    5. Install the SST using a bolt with part number 99794 1025 or an M10-1.25, length 25 mm {0.98 in} bolt, and a washer as shown in the illustration.

      Engine front side

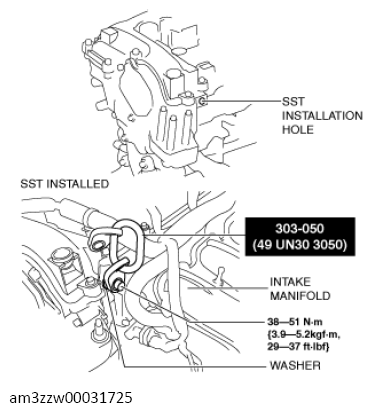

      Fig 2: Intake Manifold, Washer And Bolt With Torque Specification (Engine Front Side)
      G13556874Courtesy of MAZDA MOTORS CORP.

      Engine rear side

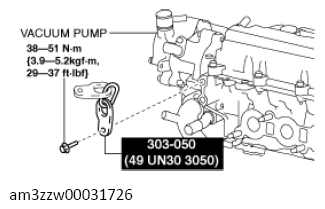

      Fig 3: Vacuum Pump Bolt With Torque Specification (Engine Rear Side)
      G13556875Courtesy of MAZDA MOTORS CORP.
    6. As shown in the illustration, set the rear shafts of the SST to the left and right front shock absorber nuts.
      G13556572Courtesy of MAZDA MOTORS CORP.
    7. Set the front shafts of the SST (49 C017 5A0) as shown in the illustration.
      G13556573Courtesy of MAZDA MOTORS CORP.
    8. To prevent interference of the SST with the hose when assembling the SST (49 L017 5A0), disconnect the hose clip from the bracket shown in the illustration and set the fuel hose and vacuum hose aside.
      G13556574Courtesy of MAZDA MOTORS CORP.
    9. Install the SST (49 L017 5A0) to the SST (49 C017 5A0) as shown in the illustration.
      G13556575Courtesy of MAZDA MOTORS CORP.
    10. Install the SST (49 L017 5A0) to the SST (49 UN30 3050) with the hook of the SST (49 L017 5A0) facing outward.
      G13556576Courtesy of MAZDA MOTORS CORP.
    11. Adjust the height of the left and right side bars so that they are leveled, then tighten each part of the SST.
    12. Apply tension to the chain to support the engine and verify that the engine is securely hung.
  5. Remove the No. 3 engine mount.
