Cylinder Head Cover Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ventilation hose from the cylinder head cover.

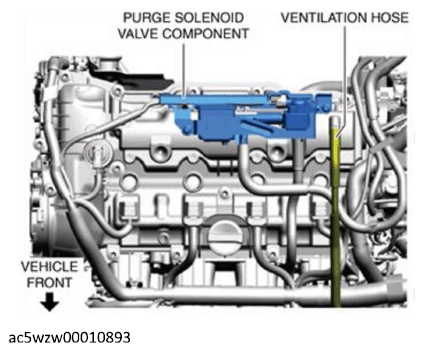

    G12188668Courtesy of MAZDA MOTORS CORP.
  2. Set the purge solenoid valve component aside using the following procedure:
    1. Remove the evaporative hose No. 1.

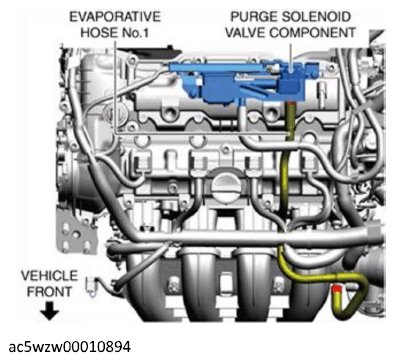

      G12188669Courtesy of MAZDA MOTORS CORP.
    2. Disconnect the evaporative hose No. 3 from the catch tank.

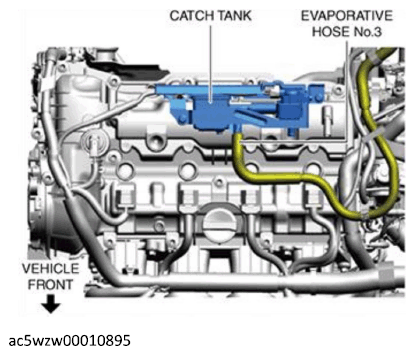

      G12188670Courtesy of MAZDA MOTORS CORP.
    3. Remove the bolts shown in the illustration.

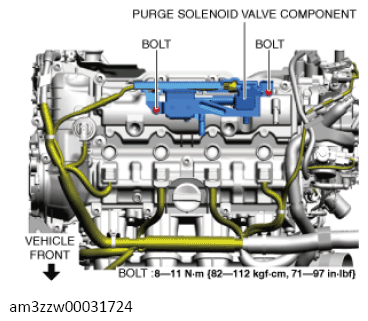

      Fig 1: Purge Solenoid Valve Component Bolts With Torque Specification
      G13556864Courtesy of MAZDA MOTORS CORP.
    4. Remove the wiring harness clip shown in the illustration.

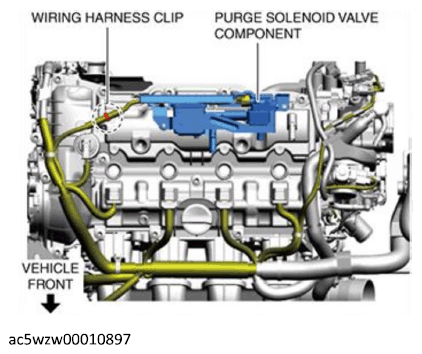

      G12188672Courtesy of MAZDA MOTORS CORP.
    5. Set the purge solenoid valve component aside.
  3. Remove the clips and set evaporative hose No. 3 aside.

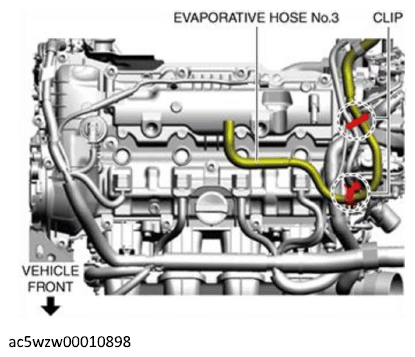

    G12188673Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the following parts connectors.

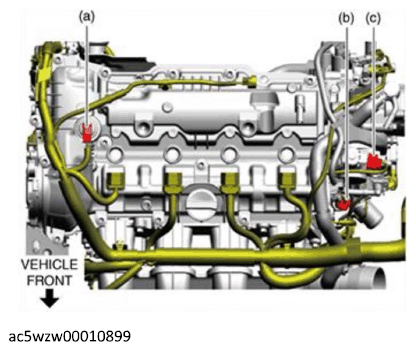

    G12188674Courtesy of MAZDA MOTORS CORP.
    1. OCV for hydraulic variable valve timing system
    2. OCV for No. 4 cylinder deactivation
    3. High pressure fuel pump
  5. Remove the wiring harness clips shown in the illustration.

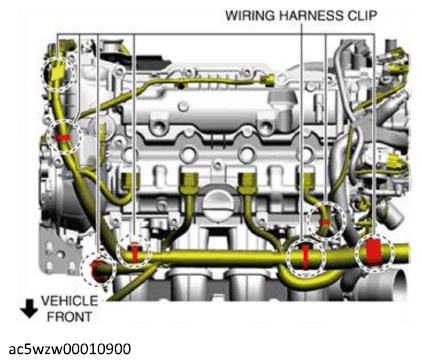

    G12188675Courtesy of MAZDA MOTORS CORP.
  6. Remove the vacuum hose. (See VACUUM HOSE REMOVAL/INSTALLATION .)
  7. Remove the cylinder head cover.
