Plug Hole Plate Removal/Installation: Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:

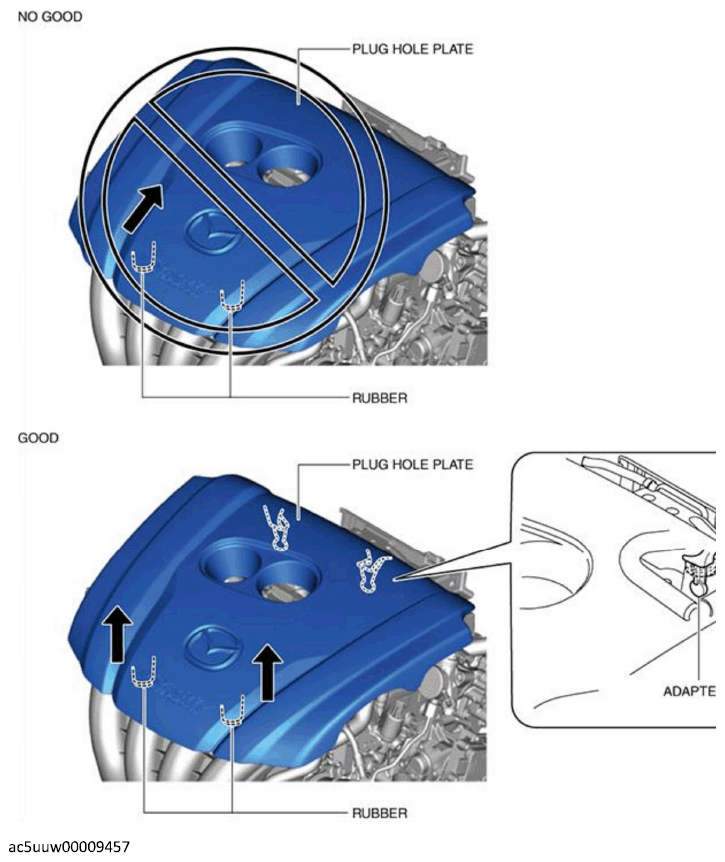

- If the rubber on only one side of the plug hole plate front is lifted up, it could damage the rear adapters shown in the illustration. When removing the plug hole plate, lift up the rubber at the front of the plug hole plate at the same time.
 Courtesy of MAZDA MOTORS CORP.
|
