OCV For Cylinder Deactivation Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

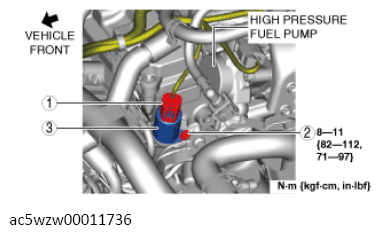

Fig 1: OCV For No. 4 Cylinder Deactivation, High Pressure Fuel Pump And Bolt With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Connector
2	Bolt (See BOLT INSTALLATION NOTE .)
3	OCV for No. 4 cylinder deactivation (See OCV FOR CYLINDER DEACTIVATION INSTALLATION NOTE .)

CAUTION:

If the OCV for cylinder deactivation is dropped accidentally, replace with a new one. Otherwise, the OCV for cylinder deactivation may not operate normally.
Be aware of the following points, otherwise engine oil leakage could result.
- Do not allow foreign matter to get caught when installing
- Do not damage the O-ring of the OCV for cylinder deactivation

Apply clean engine oil to the o-ring of the OCV for cylinder deactivation.
Install the OCV for cylinder deactivation.
