Oil Shower Pipe Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily tighten the oil shower pipe installation bolts.
  2. Install the oil shower pipe in the order shown in the illustration.

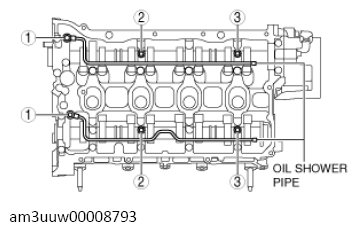

    Fig 1: Oil Shower Pipe Bolts Tightening Sequence
    G13556409Courtesy of MAZDA MOTORS CORP.
