Front Oil Seal Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Apply clean engine oil to the inner surface of a new front oil seal.
- Insert the front oil seal into the engine front cover by hand.

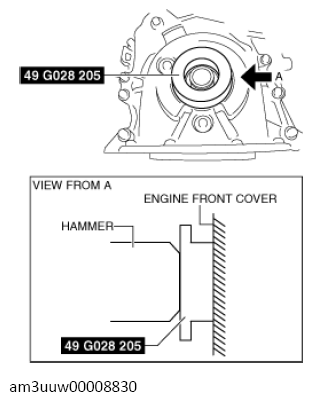

- Tap the front oil seal in evenly using the SST and a hammer.
 Courtesy of MAZDA MOTORS CORP.
|
 Courtesy of MAZDA MOTORS CORP.
|

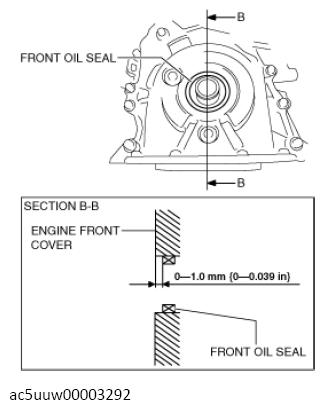

Front oil seal press on amount
0-1.0 mm {0-0.039 in} from edge surface of engine front cover
