No. 4 engine mount rubber removal note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Before removing the No. 4 engine mount rubber, support the transaxle using a commercially available engine lifter or garage jack.
  2. Place alignment marks on the locations shown in the illustration so that they can be assembled to the same positions as before removal.

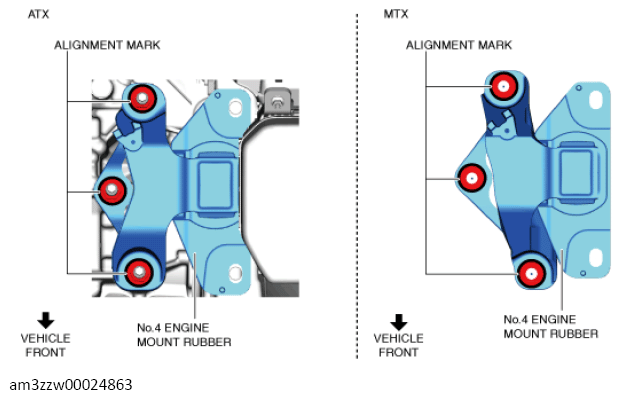

    G13556754Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • Paint so that the outline of the nut is framed on the bracket side.
  3. Remove the No. 4 engine mount rubber.
