No. 4 engine mount bracket removal note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

To prevent damage to the transaxle, support the transaxle using the following methods.

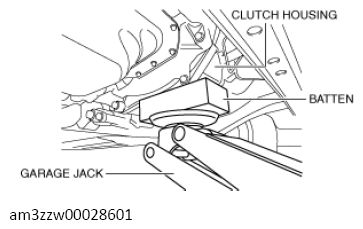

MTX: Support the clutch housing using a batten of appropriate size.

Courtesy of MAZDA MOTORS CORP.

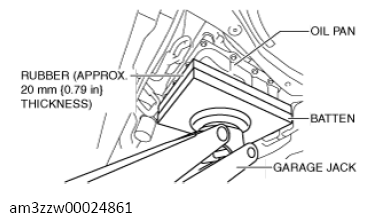

ATX: Place rubber of appropriate size (approx. 20 mm {0.79 in} thickness) on a batten which is large enough to cover and support the oil pan.

Courtesy of MAZDA MOTORS CORP.

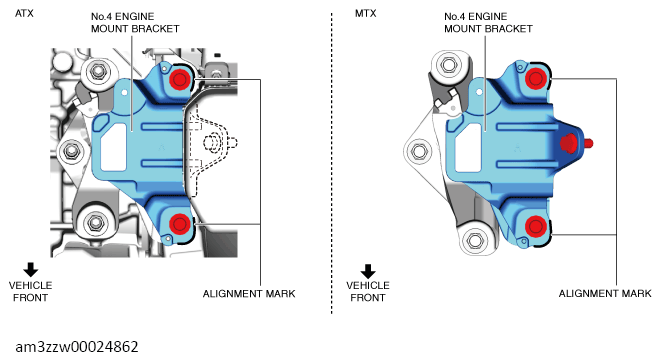

Place alignment marks on the locations shown in the illustration so that they can be assembled to the same positions as before removal.

Courtesy of MAZDA MOTORS CORP.
NOTE:
- Paint so that the outline of the nut is framed on the bracket side.
Before removing the No. 4 engine mount bracket, support the transaxle using a commercially available engine lifter or garage jack.
Remove the No. 4 engine mount bracket.
