Engine Location Index

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

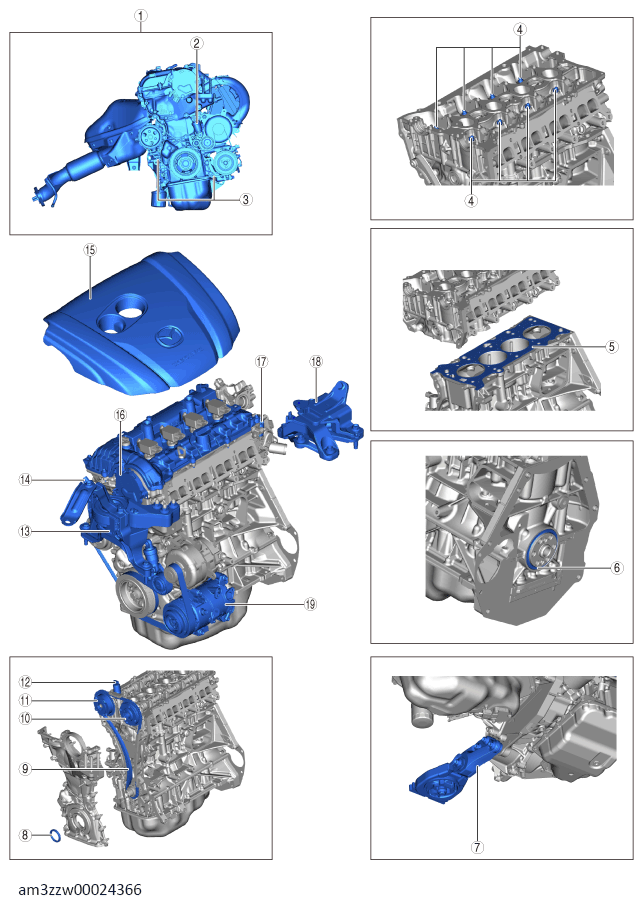

COMPONENT DESCRIPTION

1	Engine (See ENGINE TUNE-UP .) (See COMPRESSION INSPECTION .) (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .) (See ENGINE REMOVAL/INSTALLATION .) (See ENGINE DISASSEMBLY/ASSEMBLY .)
2	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION .) (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION .)
3	Drive belt (See DRIVE BELT INSPECTION .) (See DRIVE BELT REMOVAL/INSTALLATION .)
4	HLA, Switchable HLA (See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION .) (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION .)
5	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT .)
6	Rear oil seal (See REAR OIL SEAL REPLACEMENT .)
7	No. 1 engine mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .)
8	Front oil seal (See FRONT OIL SEAL REPLACEMENT .)
9	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION .)
10	Electric variable valve timing actuator (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION .) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .)
11	Hydraulic variable valve timing actuator (See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION .) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .)
12	OCV for hydraulic variable valve timing system (See OCV FOR HYDRAULIC VARIABLE VALVE TIMING SYSTEM REMOVAL/INSTALLATION .) (See OCV FOR HYDRAULIC VARIABLE VALVE TIMING SYSTEM INSPECTION .)
13	No. 3 engine mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .)
14	OCV for No. 4 cylinder deactivation (See OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION REMOVAL/INSTALLATION .) (See OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION INSPECTION .)
15	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
16	Electric variable valve timing motor/driver (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION .) (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION .)
17	OCV for No. 1 cylinder deactivation (See OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION REMOVAL/INSTALLATION .) (See OIL CONTROL VALVE (OCV) FOR CYLINDER DEACTIVATION INSPECTION .)
18	No. 4 engine mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .)
