Exhaust Manifold Bracket Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Temporarily tighten the exhaust manifold bracket installation bolts.
  2. Tighten the bolt in the order shown in the illustration.

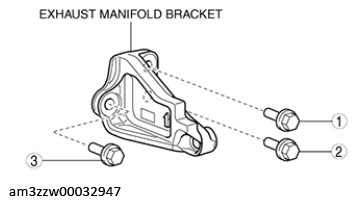

    Fig 1: Exhaust Manifold Bracket Bolts Tightening Sequence
    G13174528Courtesy of MAZDA MOTORS CORP.
