Hydraulic Variable Valve Timing Actuator Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

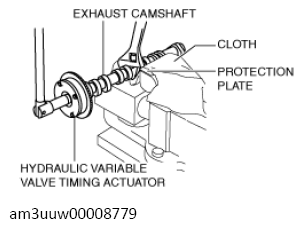

  1. Lock the exhaust camshaft against rotation by holding the exhaust camshaft with a vise and securing the cast hexagon with a wrench.
    G13556395Courtesy of MAZDA MOTORS CORP.
  2. Loosen the hydraulic variable valve timing actuator installation bolt and remove the actuator.
