Water Pump Drive Belt: Removal

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the generator drive belt. (See GENERATOR DRIVE BELT REMOVAL/INSTALLATION .)

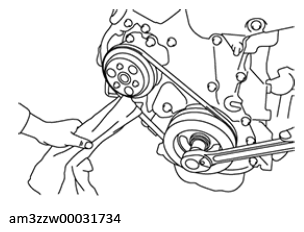

  2. Apply a clean cloth to the water pump drive belt as shown in the illustration.
    G13174470Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • To prevent damaging the drive belt, do not stop rotating the crankshaft pulley while performing the removal procedure (with inserted cloth between drive belt and water pump pulley).

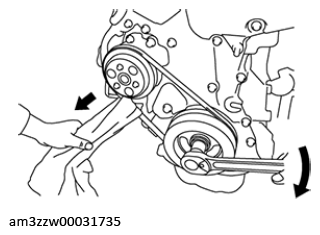

  3. Pull the cloth in the direction of the arrow and rotate the crankshaft pulley clockwise.
    G13174471Courtesy of MAZDA MOTORS CORP.
    NOTE:
    • The rib of the drive belt can be slid from the groove of the water pump pulley by rotating the crankshaft pulley while pulling the cloth in the direction of the arrow.
  4. Remove the water pump drive belt.
