Rocker Arm Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

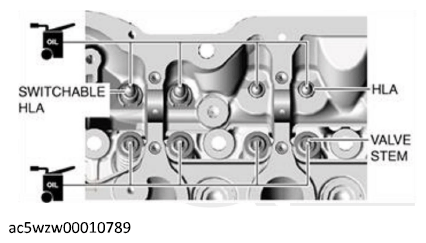

  1. Apply engine oil to the HLAs, switchable HLAs and the end of the valve stems.
    G12188436Courtesy of MAZDA MOTORS CORP.
  2. Install the rocker arms to the same positions as before removal.
