HVAC Control System Location Index (Manual A/C): Exterior

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

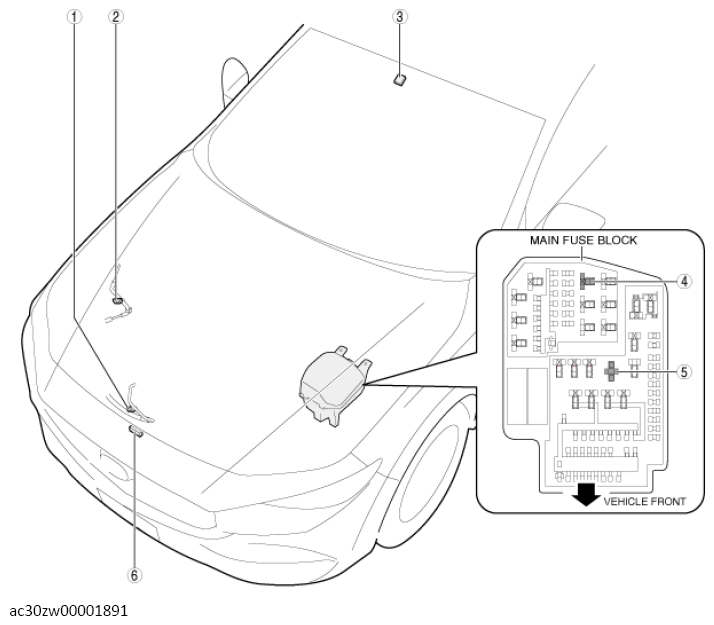

COMPONENT DESCRIPTION

1	Refrigerant pressure sensor No. 2 (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)] .) (See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER (US)] .)
2	Refrigerant pressure sensor No. 1 (See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER (US)] .) (See REFRIGERANT PRESSURE SENSOR INSPECTION [MANUAL AIR CONDITIONER (US)] .)
3	Solar radiation sensor/humidity sensor (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See HUMIDITY SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .)
4	A/C relay (See RELAY LOCATION (US) .) (See RELAY INSPECTION .)
5	Blower relay (See RELAY LOCATION (US) .) (See RELAY INSPECTION .)
6	Ambient temperature sensor (See AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION [MANUAL AIR CONDITIONER] .) (See AMBIENT TEMPERATURE SENSOR INSPECTION [MANUAL AIR CONDITIONER] .)
