Power Liftgate (PLG) Drive Unit Disposal (With PLG)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Do not disassemble a malfunctioning PLG drive unit. If a malfunctioning PLG drive unit is disassembled, the spring pressed into it may fly off and cause injury and damage to the vehicle.

Cut the cylinder case of the PLG drive unit at the position shown in the illustration using a grinder.

Courtesy of MAZDA MOTORS CORP.
Cut the cylinder case of the PLG drive unit at the position shown in the illustration using a grinder and expose the spring and housing.

Courtesy of MAZDA MOTORS CORP.
Secure the spring part of the PLG drive unit in a vise.

Courtesy of MAZDA MOTORS CORP.

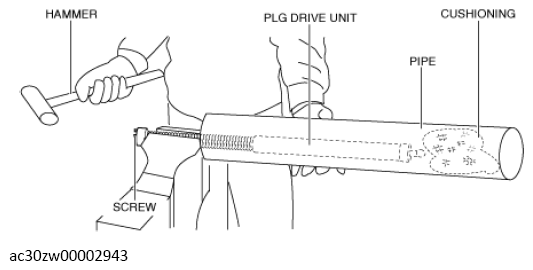

Cover the secured PLG drive unit with a pipe (PVC or equivalent) stuffed with cushioning.
Hit the end of the PLG drive unit screw with a hammer, pull out the screw, and remove the spring.
Dispose of the PLG drive unit.
