Power Liftgate (PLG) Drive Unit Preparation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

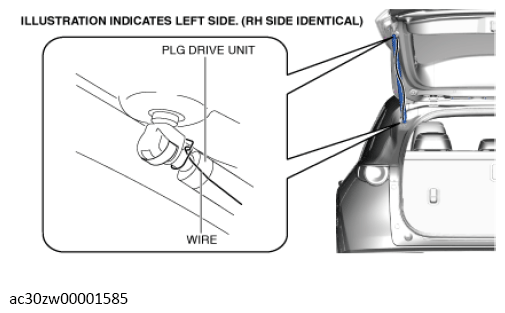

  1. Secure the PLG drive unit with wire wrapped around both ends of the PLG drive unit to prevent it from extending.
    G13559977Courtesy of MAZDA MOTORS CORP.
