Connector Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

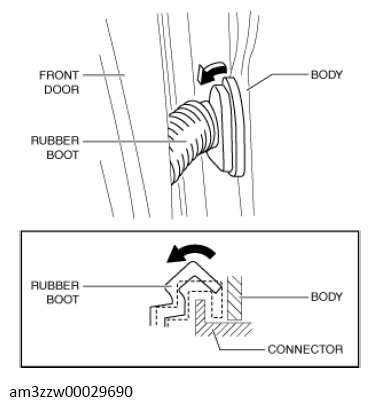

  1. Partially peel back the rubber boot in the direction of the arrow shown in the illustration and remove it from the connector.
    G13559933Courtesy of MAZDA MOTORS CORP.

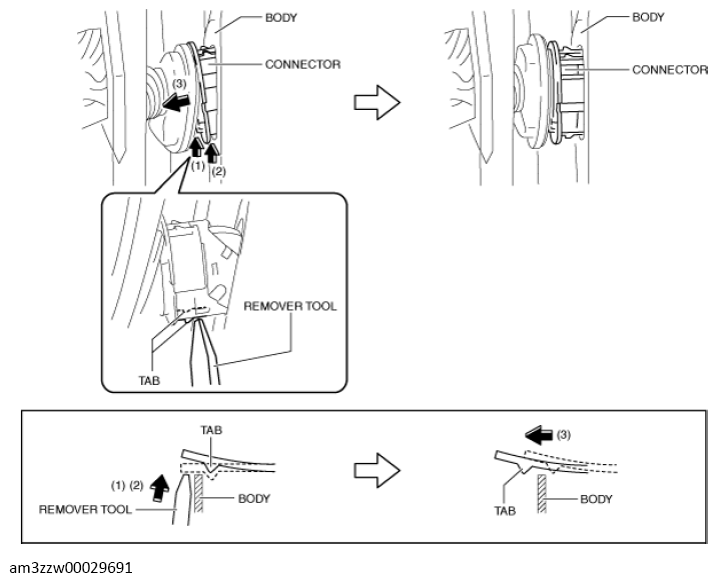

  2. Using a remover tool, press the tabs in the direction of arrows (1) and (2) shown in the illustration and remove the connector from the body in the direction of arrow (3).
    G13559934Courtesy of MAZDA MOTORS CORP.

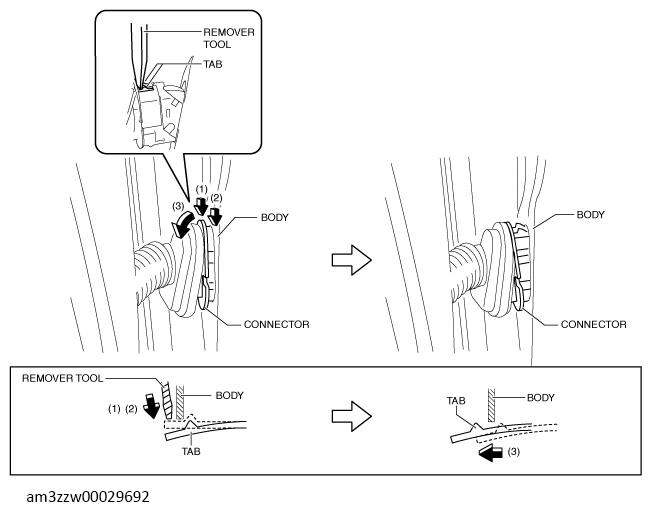

  3. Using a remover tool, press the tabs in the direction of arrows (1) and (2) shown in the illustration and remove the upper part of the connector from the body in the direction of arrow (3).
    G13559935Courtesy of MAZDA MOTORS CORP.

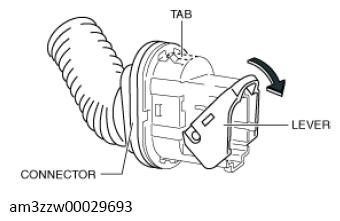

  4. Release the lever lock by pressing the connector tab shown in the illustration and tilt the lever in the direction of the arrow.
    G13559936Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the connector.
