Structural View

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

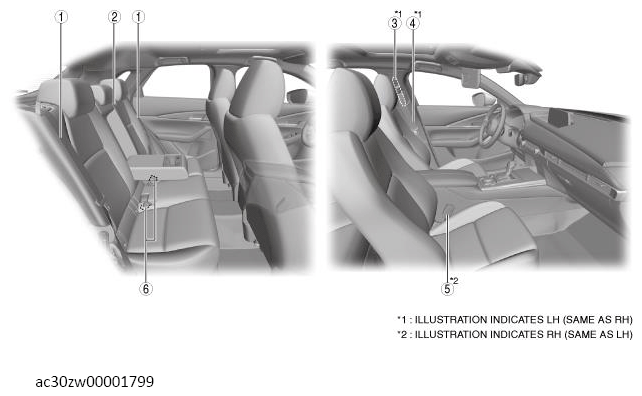

G13559564Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rear seat belt
(See REAR SEAT BELT REMOVAL/INSTALLATION (US) .)
(See SEAT BELT INSPECTION (US) .)
2 Rear center seat belt
(See REAR CENTER SEAT BELT REMOVAL/INSTALLATION .)
(See SEAT BELT INSPECTION (US) .)
3 Adjuster anchor
(See ADJUSTER ANCHOR REMOVAL/INSTALLATION .)
4 Front seat belt
(See FRONT SEAT BELT REMOVAL/INSTALLATION .)
(See SEAT BELT INSPECTION (US) .)
5 Front buckle
(See FRONT BUCKLE REMOVAL/INSTALLATION (US) .)
(See BUCKLE SWITCH INSPECTION (US) .)
6 Rear buckle
(See REAR BUCKLE REMOVAL/INSTALLATION .)
(See BUCKLE SWITCH INSPECTION (US) .)
