US/CANADA spec.: Passenger-side

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition off.
  2. Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION (US) .)

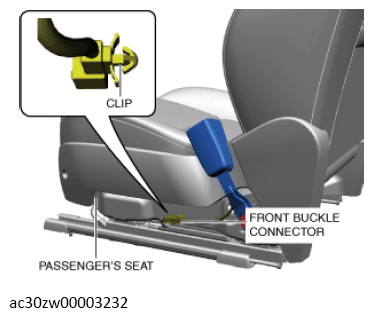

  4. Disconnect the front buckle connector.
    G13559539Courtesy of MAZDA MOTORS CORP.
  5. Remove the clip.
  6. Remove the bolt.

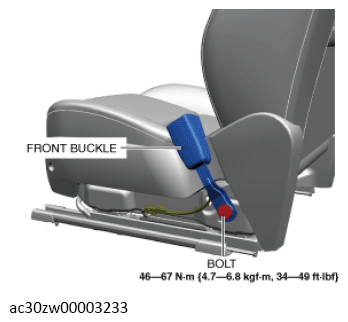

    Fig 1: Front Buckle Bolt With Torque Specification
    G13559540Courtesy of MAZDA MOTORS CORP.
  7. Remove the front buckle.
  8. Install in the reverse order of removal.
  9. Switch the ignition ON (engine off or on).
  10. Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.
    • If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the onboard diagnostic system (air bag system) and perform inspection of the system. (See DTC INSPECTION .)
