Oil Pump Driven Sprocket Installation Note (SKYACTIV-G 2.5)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Align the marks on each sprocket and the oil pump chain.

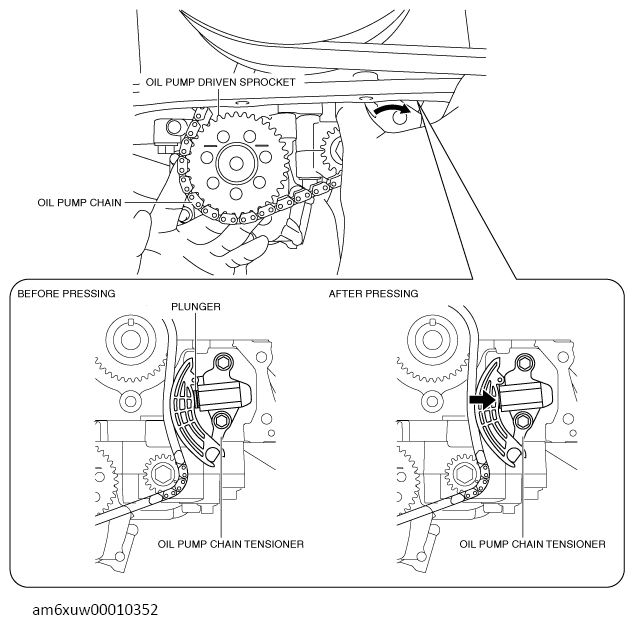

- While pressing the oil pump chain in the direction of the arrow shown in the illustration, install the oil pump driven sprocket.
- While locking the oil pump against rotation as shown in the illustration, tighten the oil pump driven sprocket installation bolt.
