Emission Wiring Harness Connector Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Cover the emission wiring harness connector and short-cord connector using tape to prevent engine oil from adhering to the connector terminal.

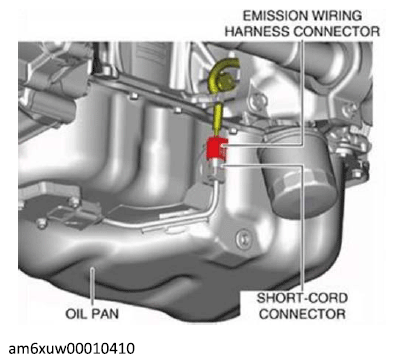

  1. Disconnect the emission wiring harness connector.
    G12228910Courtesy of MAZDA MOTORS CORP.
