Engine Oil Solenoid Valve Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

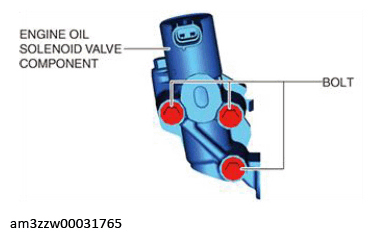

- After tightening the three bolts shown in the illustration, tighten the first tightened bolt to the specified tightening torque again.
 Courtesy of MAZDA MOTORS CORP.
|
NOTE:
- The tightening order for the three bolts is optional.
