Taping work
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

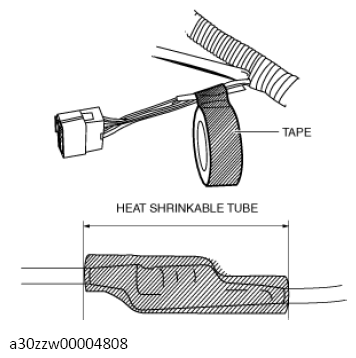

- Tape the surface of the heat-shrinkable tubing.
 Courtesy of MAZDA MOTORS CORP.
|
CAUTION:
- Remove moisture, oil, and dust from the area to be taped before doing the taping.
- Firmly tape the ends so that they do not peel off.
- Always overlap the tape when wrapping.
- Wrap the tape until it completely covers the heat-shrinkable tubing.
