Jack up procedure for front wheel (2WD, AWD)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Use a low-floor type garage jack. Otherwise, the jack unit may contact the front bumper when it is put under the vehicle.
  1. Set the wheel blocks to the front and back of the rear wheels.

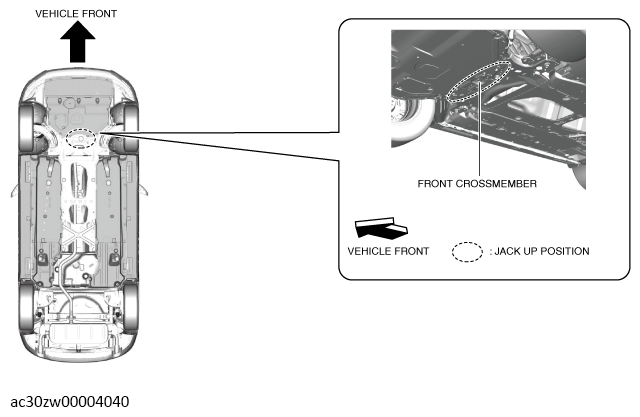

  2. Set the jack to the jack up position of the front crossmember shown in the illustration and jack up a front wheel.
    G13556028Courtesy of MAZDA MOTORS CORP.

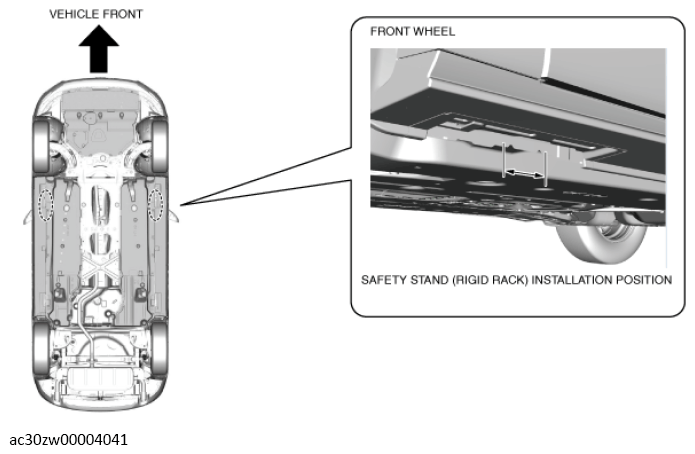

  3. Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the front wheel shown in the illustration.
    G13556029Courtesy of MAZDA MOTORS CORP.
