Jack up procedure for all wheels (2WD)

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Use a low-floor type garage jack. Otherwise, the jack unit may contact the front bumper when it is put under the vehicle.
  1. Set the wheel blocks to the front and back of the front wheels.

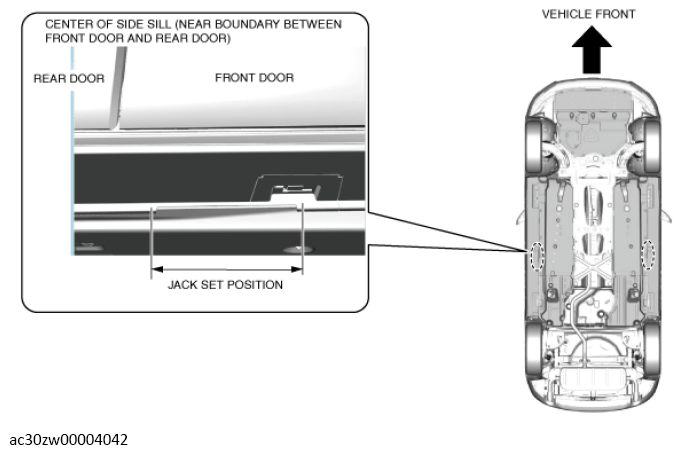

  2. Set the jack to the jack up position of the side sill on the right side shown in the illustration and jack up the right rear wheel.
    G13556026Courtesy of MAZDA MOTORS CORP.

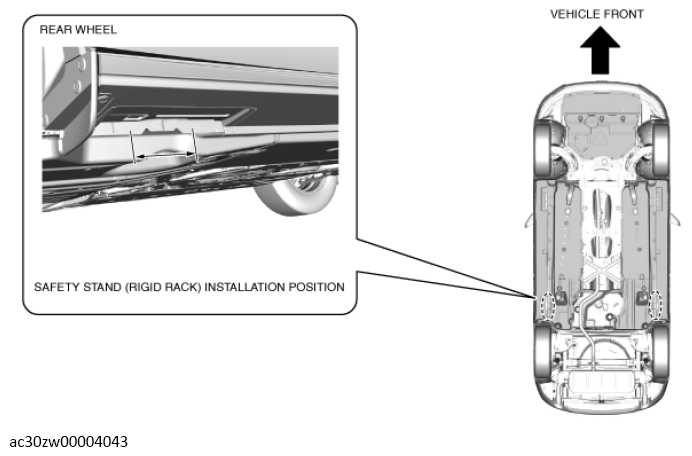

  3. Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the right rear wheel shown in the illustration.
    G13556027Courtesy of MAZDA MOTORS CORP.
  4. Set the jack to the jack up position of the side sill on the left side and jack up the left rear wheel.
  5. Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the left rear wheel.
  6. Set the jack to the jack up position of the front crossmember shown in the illustration and jack up a front wheel.
    G13556028Courtesy of MAZDA MOTORS CORP.
  7. Install the safety stand (rigid rack) to the safety stand (rigid rack) installation position for the front wheel shown in the illustration.
    G13556029Courtesy of MAZDA MOTORS CORP.
