Jacking up Using Auto Lift (2-Post)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

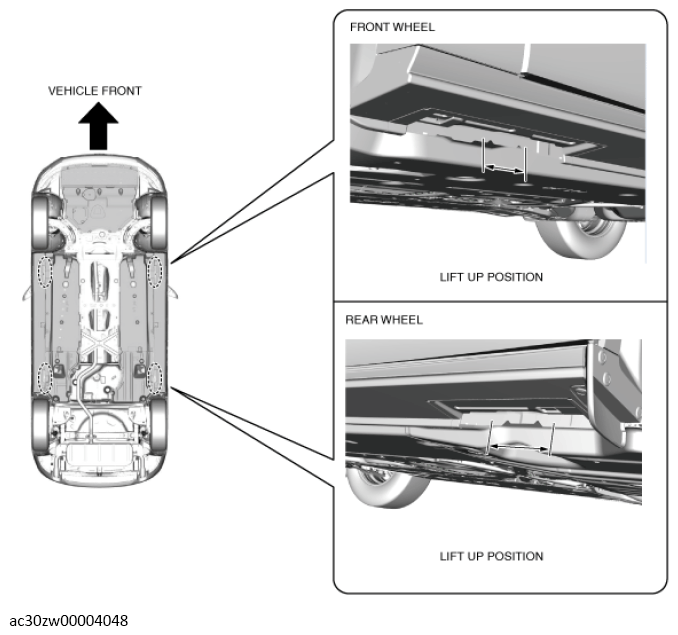

- Align the arm end of the auto lift with the lift up position shown in the illustration.
- Adjust the height of the lift pads on the arm end of the auto lift so that the vehicle to be lifted is level.WARNING:
- Before lifting the vehicle, verify that the vehicle is stabilized and level. If the vehicle is not stabilized while on the lift, it could fall off while it is being lifted or during servicing, leading to serious injury or death, and vehicle damage.
- Lift the vehicle.
