Vehicle harness-side connector

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

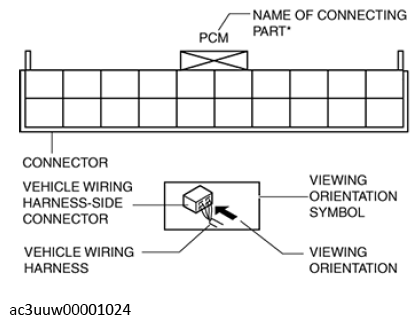

The viewing orientation for vehicle wiring harness-side connectors is from the wiring harness side.

Courtesy of MAZDA MOTORS CORP.

*: With the wiring harness-side connector, connecting part names of all connectors are displayed in the illustration.
