Disconnecting connectors
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

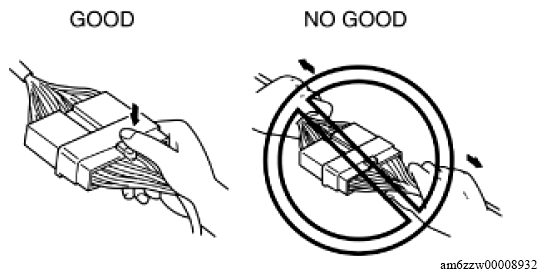

- When disconnecting a connector, grasp the connectors, not the wires.
 Courtesy of MAZDA MOTORS CORP.
|

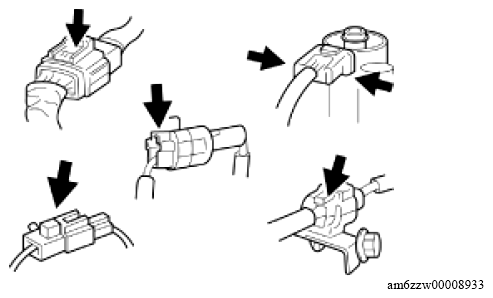

- Connectors can be disconnected by pressing or pulling the lock lever as shown.
 Courtesy of MAZDA MOTORS CORP.
|
