Set Plate Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

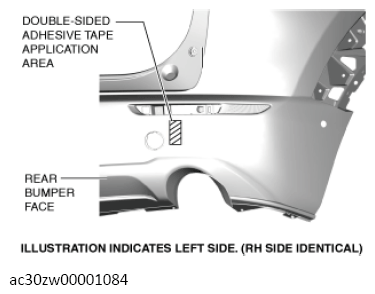

- Remove any grease or dirt on the double-sided adhesive tape application area shown in the illustration.
 Courtesy of MAZDA MOTORS CORP.
|

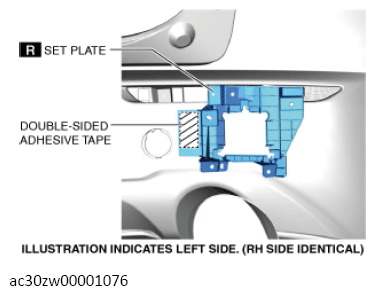

- Peel off the backing of the double-sided adhesive tape and install the set plate.
 Courtesy of MAZDA MOTORS CORP.
|
- Press the set plate to adhere the double-sided adhesive tape.
