Rivet Removal Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- When removing the rivet, perform the following procedure:

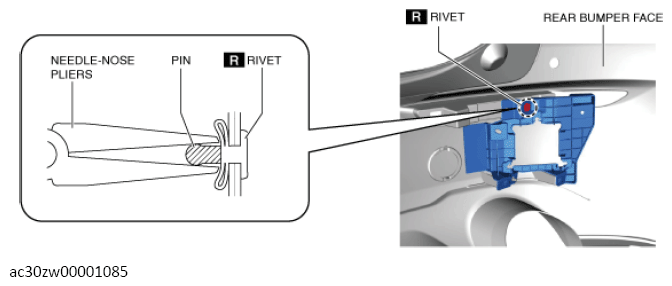

- Secure the rivet pin from the rear bumper face side using needle-nose pliers.

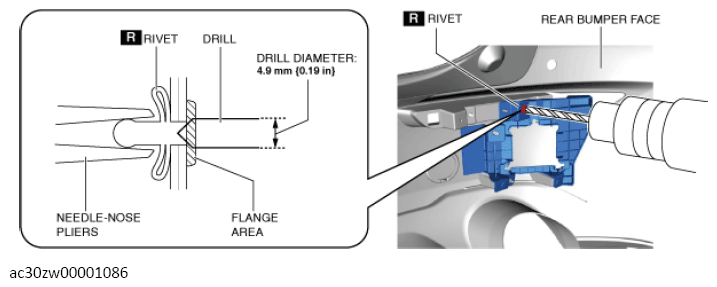

- Use the following drill diameter.
Drill diameter:
4.9 mm {0.19 in}
CAUTION:- If an inappropriate drill diameter is used, the rear bumper face may be damaged.
- Remove the rivet flange using a drill and remove the rivet.
- Remove any rivet shavings from the rear bumper face.
- Secure the rivet pin from the rear bumper face side using needle-nose pliers.
