Height Difference Adjustment

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

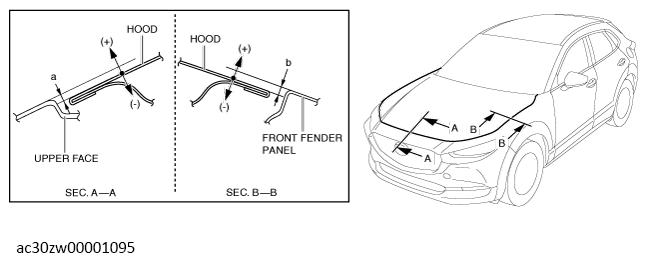

Verify that the height difference between the hood and the body is within the specification.

Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. -2.0-2.0 mm {-0.078-0.078 in}
2. -1.0-1.0 mm {-0.039-0.039 in}
  - If the measured value exceeds the standard clearance, adjust the hood using the following procedure.

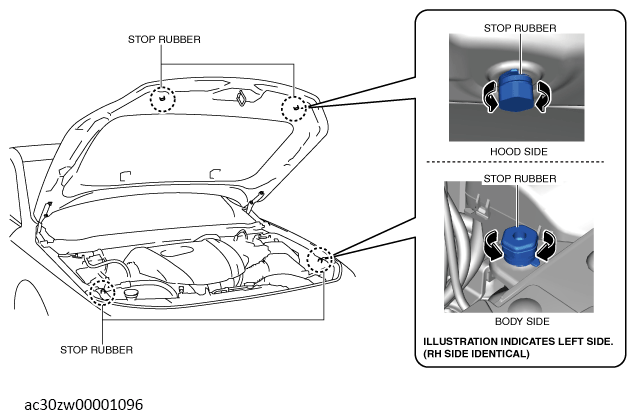

Turn the stop rubbers to adjust the height of the hood.

Courtesy of MAZDA MOTORS CORP.
