Gap Adjustment

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

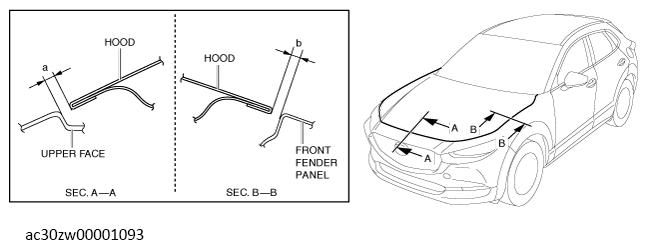

Verify that the gap between the hood and the body is within the specification.

Courtesy of MAZDA MOTORS CORP.

Standard clearance
1. 2.6-5.6 mm {0.11-0.22 in}
2. 2.5-4. 0 mm {0.10-0.15 in}
  - If the measured value exceeds the standard clearance, adjust the hood using the following procedure.
Loosen the bolts and adjust the hood.

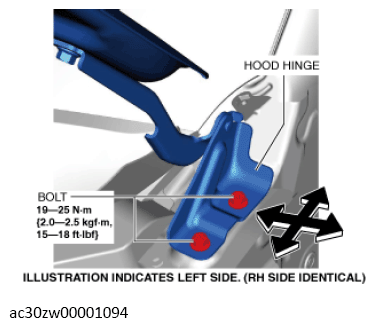

Fig 1: Hood Hinge Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts.
