Front Side Radar Sensor Bracket, Hole Cover Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

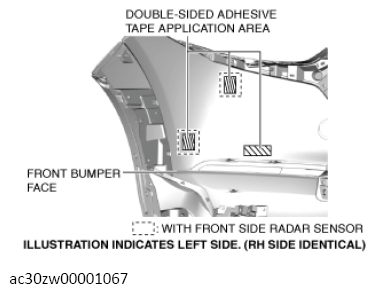

- Remove any grease or dirt on the double-sided adhesive tape application areas shown in the illustration.
- Peel off the tape backing from the double-sided adhesive tape from the front side radar sensor bracket and hole cover, and install the front side radar sensor bracket and the hole cover to the front bumper face.
- Press the double-sided adhesive tape areas of the front side radar sensor bracket and the hole cover.
