Front Fender Insulator No. 2 Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

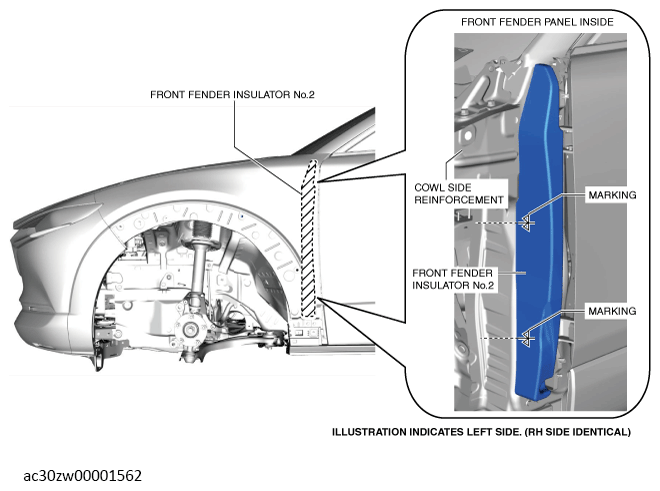

  1. Install front fender insulator No. 2 to the position shown in the illustration.
G13559850Courtesy of MAZDA MOTORS CORP.
