FRONT FENDER INSULATOR No. 1 REMOVAL/INSTALLATION: Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the following parts:
- Front over fender (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
- Front tire (See WHEEL AND TIRE REMOVAL/INSTALLATION .)
- Front mudguard (See MUDGUARD REMOVAL/INSTALLATION .)

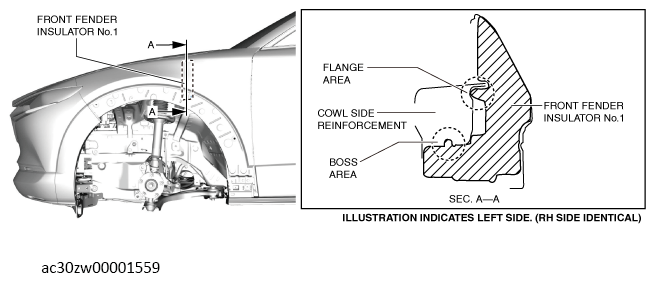

- Remove the front fender insulator No. 1 boss area from the hole of the cowl side reinforcement.
- Pull out front fender insulator No. 1 from the cowl side reinforcement flange area.

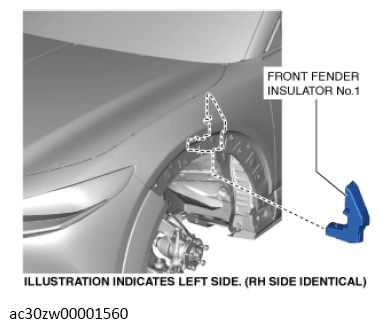

- Remove front fender insulator No. 1.
- Install in the reverse order of removal. (See FRONT FENDER INSULATOR NO. 1 INSTALLATION NOTE .)
