DTC B1B97-23: Slide Switch (Backward) Circuit Malfunction [Dash-Electrical Supply Unit]: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC B1B97:23 [DASH-ELECTRICAL SUPPLY UNIT] DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Slide switch (backward) circuit malfunction
Detection condition	The dash-electrical supply unit detects that slide switch (backward) circuit is stuck on.
Fail-safe	Not applicable

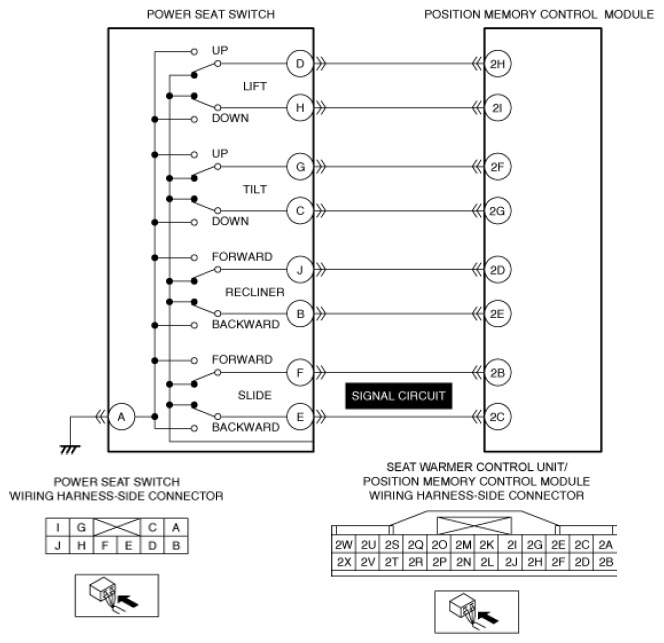

Possible cause	Power seat switch connector or terminal malfunction Position memory control module connector or terminal malfunction Power seat switch malfunction Short to ground in slide switch (backward) signal circuit Position memory control module malfunction Dash-electrical supply unit malfunction
Courtesy of MAZDA MOTORS CORP.
