DTC B14CE-13: Slide Motor Circuit Malfunction [Dash-Electrical Supply Unit]: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC B14CE:13 [DASH-ELECTRICAL SUPPLY UNIT] DETECTION CONDITION AND POSSIBLE CAUSE

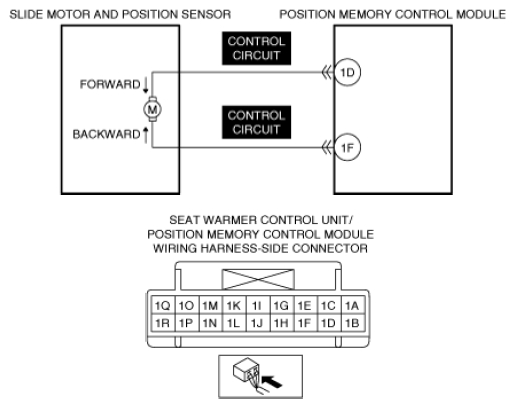

System malfunction location	Slide motor circuit malfunction
Detection condition	The dash-electrical supply unit detects an open circuit in slide motor circuit.
Fail-safe	Stops the slide motor.
Possible cause	Position memory control module connector or terminal malfunction Driver-side front seat malfunction Open circuit in slide motor control circuit Slide motor malfunction Position memory control module malfunction Dash-electrical supply unit malfunction
Courtesy of MAZDA MOTORS CORP.
