DTC B13BD-87: Communication Error With Heated Steering Wheel Control Unit [Dash-Electrical Supply Unit]: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

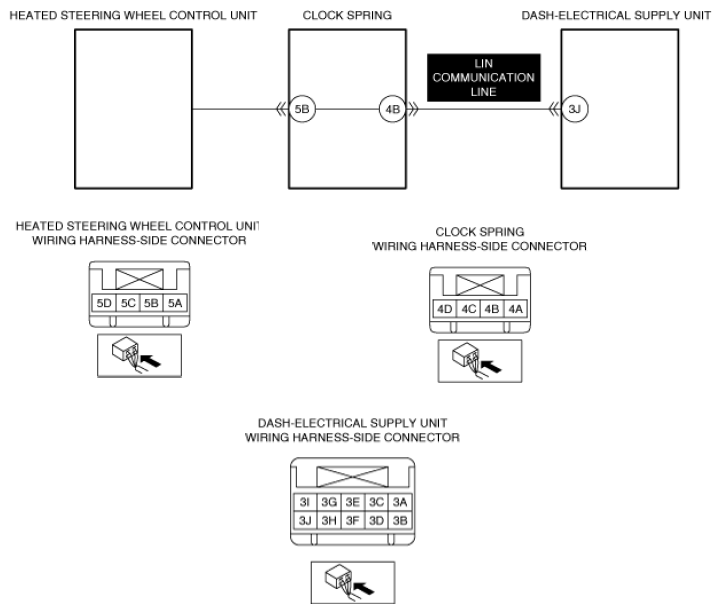

DTC B13BD:87 [DASH-ELECTRICAL SUPPLY UNIT] DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Communication error with heated steering wheel control unit |
| Detection condition |
- The dash-electrical supply unit cannot receive LIN signal from the heated steering wheel control unit.
|
| Fail-safe |
- Stops the steering warmer output.
|
| Possible cause |
- Clock Spring connector or terminal malfunction
- Heated steering wheel control unit connector or terminal malfunction
- Clock spring malfunction
- Dash-electrical supply unit connector or terminals malfunction
- Short to ground in heated steering wheel control unit LIN communication line
- Short to power supply in heated steering wheel control unit LIN communication line
- Open circuit in heated steering wheel control unit LIN communication line
- Heated steering wheel control unit malfunction
- Dash-electrical supply unit malfunction
|
