DTC B13BD-1C: Heated Steering Wheel Control Unit Power Supply Circuit Malfunction [Dash-Electrical Supply Unit]: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

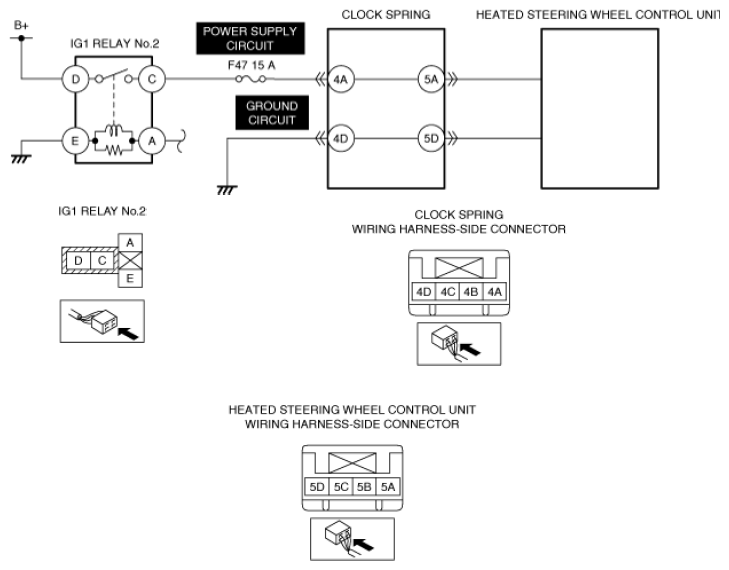

DTC B13BD:1C [DASH-ELECTRICAL SUPPLY UNIT] DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Heated steering wheel control unit power supply circuit malfunction |
| Detection condition |
- The dash-electrical supply unit detects a malfunction in the steering warmer control unit power supply circuit.
|
| Fail-safe |
- Stops the steering warmer output.
|
| Possible cause |
- IG1 relay No. 2 malfunction
- Clock Spring connector or terminal malfunction
- F47 15 A fuse malfunction
- Short to ground in heated steering wheel control unit power supply circuit
- Short to power supply circuit in heated steering wheel control unit power supply circuit
- Open circuit in heated steering wheel control unit power supply circuit
- Open circuit in heated steering wheel control unit ground circuit
- Heated steering wheel control unit connector or terminal malfunction
- Clock spring malfunction
- Heated steering wheel control unit malfunction
- Dash-electrical supply unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
