DTC B10FB-19: Air Intake Actuator Circuit Malfunction [Dash-Electrical Supply Unit (Us)]: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

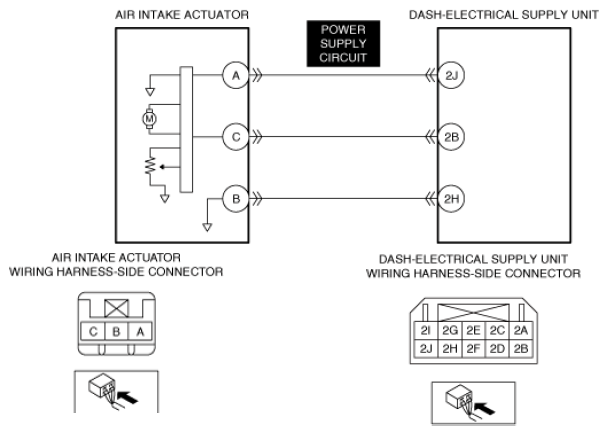

DTC B10FB:19 [DASH-ELECTRICAL SUPPLY UNIT (US)] DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Air intake actuator circuit malfunction
Detection condition	The dash-electrical supply unit detects excess current in the air intake actuator power supply circuit.
Fail-safe	Not applicable
Possible cause	Air intake actuator connector or terminal malfunction Dash-electrical supply unit connector or terminal malfunction Short to power supply in air intake actuator power supply circuit Air intake actuator malfunction Dash-electrical supply unit malfunction
Courtesy of MAZDA MOTORS CORP.
