DTC B1086-87: Communication Error With Airflow Mode Actuator [Dash-Electrical Supply Unit (Us)]: Outline
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

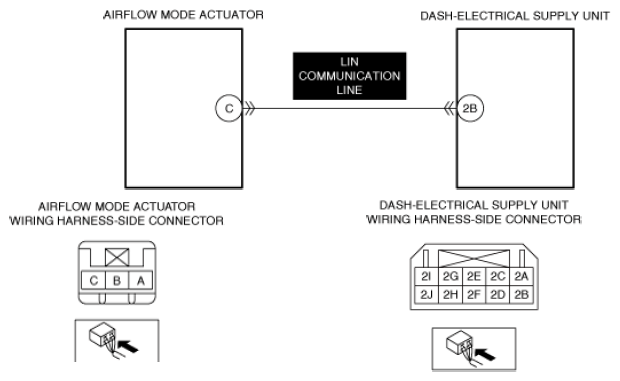

DTC B1086:87 [DASH-ELECTRICAL SUPPLY UNIT (US)] DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Communication error with airflow mode actuator |
| Detection condition |
- The dash-electrical supply unit cannot receive the signals from the airflow mode actuator.
|
| Fail-safe |
- Airflow mode actuator drive signal is stopped right when the malfunction is determined.
|
| Possible cause |
- Dash-electrical supply unit power supply circuit malfunction
- Airflow mode actuator connector or terminal malfunction
- Dash-electrical supply unit connector or terminal malfunction
- Short to ground in airflow mode actuator LIN communication line
- Short to power supply in airflow mode actuator LIN communication line
- Open circuit in airflow mode actuator LIN communication line
- Airflow mode actuator malfunction
- Dash-electrical supply unit malfunction
|
