DTC B103A:63 [DASH-ELECTRICAL SUPPLY UNIT (US)] DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Seat warmer unit (RH) circuit malfunction (Thermistor side) |
| Detection condition |
- The dash-electrical supply unit detects the output time-out status on the heater side due to a malfunction on the thermistor side of the seat warmer unit (RH).
|
| Fail-safe |
- Stops the driver and front passenger's seat warmer output.
|
| Possible cause |
- DTCs are stored in the dash-electrical supply unit.
- Other DTCs related to seat warmer unit (RH) circuit are stored
- Seat warmer control unit connector or terminal malfunction

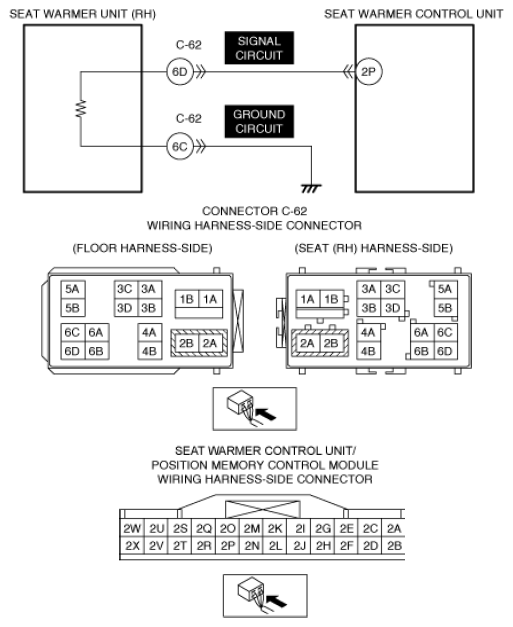

- Connector C-62 malfunction
- Short to power supply in any of following seat warmer unit (RH) circuits:
- Front seat (RH) malfunction
- Seat warmer unit (RH) malfunction
- Seat warmer control unit malfunction
- Dash-electrical supply unit malfunction
|
