With Position Memory System: Outline

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

DTC B103A:11 [DASH-ELECTRICAL SUPPLY UNIT (US)] DETECTION CONDITION AND POSSIBLE CAUSE

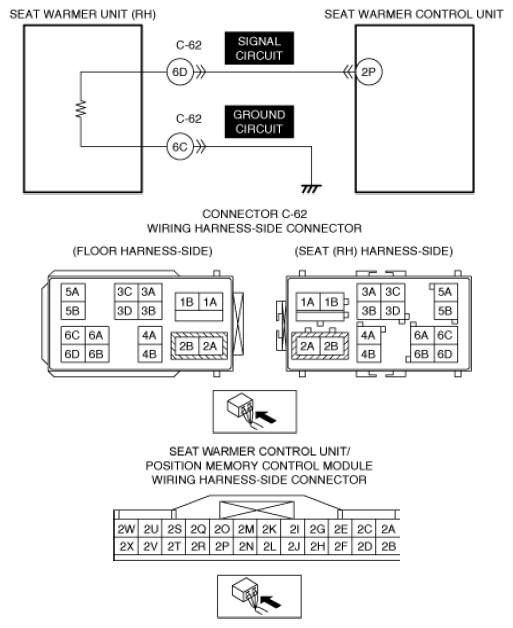

System malfunction location	Seat warmer unit (RH) circuit malfunction (Thermistor side)
Detection condition	The dash-electrical supply unit detects a short to ground in the seat warmer unit (RH) circuit.
Fail-safe	Stops the driver and front passenger's seat warmer output.
Possible cause	Seat warmer control unit connector or terminal malfunction Connector C-62 malfunction Short to ground in seat warmer unit (RH) signal circuit Front seat (RH) malfunction Seat warmer unit (RH) malfunction Seat warmer control unit malfunction Dash-electrical supply unit malfunction
Courtesy of MAZDA MOTORS CORP.
