DTC B1032:13 [DASH-ELECTRICAL SUPPLY UNIT (US)] DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
Seat warmer unit (RH) circuit malfunction (Heater side) |
| Detection condition |
- The dash-electrical supply unit detects an open circuit in the seat warmer unit (RH) circuit.
|
| Fail-safe |
- Stops the driver and front passenger's seat warmer output.
|
| Possible cause |
- Overheating protection function operates
- Seat warmer control unit connector or terminal malfunction
- Connector C-62 malfunction

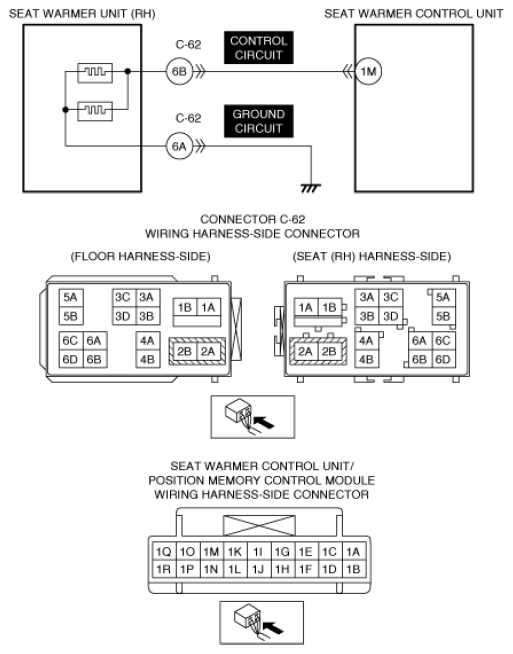

- Open circuit in any of following seat warmer unit (RH) circuits:
- Front seat (RH) malfunction
- Seat warmer unit (RH) malfunction
- Seat warmer control unit malfunction
- Dash-electrical supply unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
