PCV Hose Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

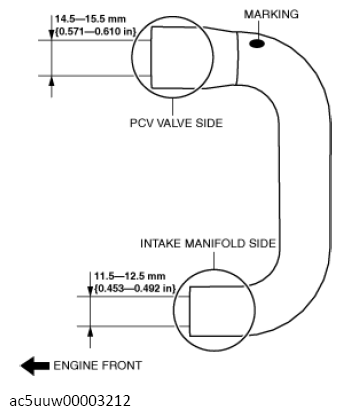

  1. Install the end of the PCV hose on the marking side (PCV hose with larger inner diameter) to the PCV valve.
G13562113Courtesy of MAZDA MOTORS CORP.
